Boundary Descriptions

 You are here:    Boundary Problems  |  Legal Background  |  Boundary Definitions of Registered and Unregistered Land
Historical Context
Making and Defining New Boundaries
Typical Boundary Descriptions
Boundaries of Unregistered Land
Boundaries of Registered Land
Comparing boundaries with your neighbour
Common shortcomings in boundary descriptions
Complications in interpreting boundaries from the title deeds


" ... we are marching slowly but surely towards a situation
in which no vendor will be able to tell prospective purchasers
the exact location of the boundaries of the land that is offered for sale. "



Historical Context

In England and Wales the government has no responsibility for describing newly created boundaries. This situation stems from the fact that all of the land in the country is already considered to be in private ownership (even if some of those "private owners" are government departments or local government entities).

Thus central government, manifesting itself in the form of Land Registry, has no role to play in distributing land, does not create new boundaries, and has no role to play in describing new boundaries.

A new boundary is made when a landowner decides to divide his land and sell the divided off part or parts of his land. It is the landowner who sells a part of his land who decides where any new boundary will be located.

It is important to recognise that in the first instance the boundary exists only in the mind of the landowner who is about to divide his land. The boundary is thus an abstract construct (or an imaginary line, if you prefer).

It is the landowner who has divided his land who is, at least nominally, responsible for describing the new boundaries he has created. I say nominally, because in practice the description appears in the title deed, be it a conveyance of registered land or a transfer of part of land that is already registered. I have yet to see such a deed acknowledging the authorship of the boundary description.

Before mapping was available, boundaries were described in words using the metes and bounds method.

Large scale mapping of extensive areas of England and Wales first became available following the Tithe Commutation Act 1836. These tithe maps, usually at a scale of 1:10,560 (six inches on the map is equivalent to one mile on the ground), were surveyed between 1836 and 1841 and published by 1851. They were in essence a graphic to accompany a list of all of the landowners in each parish who were liable to payment of tithes. The maps were soon put to alternative uses, including incorporation into a conveyance deed as a means of describing the boundaries of land being sold.

In 1841 Ordnance Survey was given the go-ahead to map most of England, Wales and Scotland at a scale of 1: 2500, and to map the mountainous areas at 1:10,560 (Six Inch) scale. The Ordnance Survey Act 1841 gave them the authority to do this. Section 12 of the Act also made it clear that the maps would not define property boundaries nor have any effect on the ownership of or interests in land. Whether or not the 1841 Act's separation between land ownership and Ordnance Survey mapping was a backlash against the tithe maps, the new practice of using available mapping as a means of describing property boundaries in deeds of conveyance continued but now using the Ordnance Survey mapping. Presumably those who used the Ordnance Survey maps for conveyancing purposes had never read Section 12 of the Ordnance Survey Act 1841.

One consequence of using maps to describe boundaries is that the metes and bounds system generally fell out of use, at least in England and Wales although there is a tendency for its use to continue in Scotland. Why describe the 'bounds' (the physical feature that the boundary followed) when there was a line on the map depicting it?

All of the above relates to unregistered land. Land Registry was founded in 1862 with the aim of assembling a register of titles to land through a process of voluntary applications by land owners. Difficulties were encountered from the start because the boundary description methods outlined above were at odds with Land Registry's requirement for property boundaries to be described to the nearest inch. In 1875 the concept of the general position of the boundary was introduced. The Land Transfer Act 1897 prescribed that "the Ordnance map, on the largest scale published, shall be the basis of all registered descriptions of land". You can follow this link to read more about the early history of Land Registration in England Wales.

If the only boundary description available to you is a Land Registry title plan then you must bear in mind that:

  • by law it shows only the general position of the boundary;
  • by law it is based on the Ordnance Survey map;
  • by law the Ordnance Survey map does not define property boundaries;
  • in practice there are accuracy limitations to Ordnance survey maps, and issues of map interpretation, that make them unsuitable as a basis for determining the exact line of a boundary.



    Return to Top of Page



Making and Describing New Boundaries

Having reviewed the development of the methods for describing new boundaries it is appropriate to consider the circumstances in which new boundaries arise. Different methods of boundary creation may produce different types of boundary description.

New boundaries are usually formed using one of four methods:

  • Building Plots
    Single building plots are offered to individual purchasers by an owner with a large area of undeveloped land that has road access. This practice was in common use between the 1890's and 1930's. Each plot is described as having a road frontage of a particular width and a depth back from the road of a particular length. There is no indication of whether the plot of land is a rectangle, a parallelogram, but if it is of some other shape this will be evident from the dimensions given. The purchaser is required, through restrictive covenants written into the Indenture or Conveyance, to erect fences along certain of the boundaries of the plot he buys.

  • Development Land
    A large area is sold to a single developer. This large area may, for example, be an entire field divided from a farm. The position of the new boundary may appear to be obvious from the Ordnance Survey mapping - one or more field boundaries found on the Ordnance Survey map. Reference to a particular field number found on the Ordnance Survey map was a common way of describing the land sold, with the boundaries being identified by implication as the lines surrounding that field number. But those lines represent physical features, not property boundaries.

  • Creating individual property boundaries within development land
    The developer is then free to divide the land as he sees fit, e.g. by building houses upon it and separating the gardens of those houses from each other with fences. This practice has been in common use since the 1960's. The boundaries of each plot are usually described by reference to a plan of the development, usually at a larger scale than is used by the Ordnance Survey map. This larger scale permits greater accuracy, and this is presumed to be sufficient for no dimensions to be needed in support of the plan. All too often this plan is a plan of the design rather than a plan of what was actually built. The fences may have been erected at some distance away from where they are shown on the design plan.

  • Small changes to land already built upon
    a)   A small area is transferred from one garden to an adjoining garden, to provide sufficient space in the purchaser's garden to, for example, build an extension or a garage, or
    b)   a single building plot is divided off from a field or from a property with a large garden.
    -   In either case, such small portions of land are usually described with reasonable accuracy. However, unless the vendor (seller or transferor) marks the boundary physically then there may be scope for later dispute as to the position of the boundary.

The end result of each method is a conveyance plan that will be referenced from the parcels clause of the conveyance, that may or may not be an accurate representation of what is on the ground, and may or may not result in the presence of dimensions stated either on the plan or in the deed or both.

The above four methods of new boundary creation are described in relation to unregistered land. New boundary creation now occurs by division of registered land. The first of the above methods is unlikely to be used in the modern era, but the other three are all likely to be used. The result of each is a transfer plan that will be attached to a Transfer of Part deed (often known as a TP1). The only real difference that results from dividing registered land is the requirement for the transfer plan to be reconcilable with the Ordnance Survey map for land registration purposes (i.e. to assist Land Registry in drawing up a title plan).



    Return to Top of Page



Below is an extract from a conveyance plan dating from 1910 relating to the first building plot in a row of nine such buildings plots. This is an example of the first method (described above) of new boundary formation. The quality of the boundary descriptions for individual properties will depend both on the ability of the vendor to describe the boundary accurately and on the purchaser's ability to place his fences accurately.

Extensive land sold in 1910 as a series of building plots

The photograph below was taken in 2005 during the construction of a housing estate and is an example of the third method (described above) of new boundary formation. The quality of the boundary descriptions for individual properties will depend on whether the transfer plans are based upon surveys of what was actually built or upon design plans.

It is the developer who decides where the boundaries around each new house will be, Newark, 2005.

How are boundaries described? In England & Wales there is no legal specification for where boundaries must run.

  • Some boundaries run along the centre of a river, whilst others run along a river bank.
  • Some boundaries run along the centre of a road whilst others run along the edge of the road (or the edge of the footpath or verge that furthest from the carriageway of that road.
  • Some boundaries will run along the face of a building whilst others will run at an unspecified distance from the face of a building. There is no law that says a building must be aligned parallel with any of its associated boundaries.
  • Some boundaries will be marked by a fence or a wall: but the fence or wall may be located at a disatnce from the boundary or be unrelated to the boundary: some boundary walls, and even fences, may be party structures (standing astride the boundary) whilst others will belong to one property only (standing with the boundary running along its outer face).
  • Other boundaries will run parallel to a hedge, perhaps - but not necessarily - according to the hedge-and-ditch principle: in a few cases the boundary may run along the centre of the hedge, these rare cases being referred to as party hedges.
The only boundary that may be related with some certainty, but not with absolute certainty, to a physical feature is the boundary running along the centre of the party wall that joins two dwellings to each other in terraced or semi-detached houses.

It is dangerous to assume that the boundary runs along a median line between two houses that are not attached to each other.

In some countries the law requires that the corner points of plots, and any turning points along the boundaries of those plots of land, be "monumented" with an approved marker to permanently and unambiguously demonstrate the positions of the boundaries. In England & Wales there is no such legal requirement.



    Return to Top of Page



Typical Boundary Descriptions

In England & Wales, with the exception of those boundaries that are registered under an Exact Line of Boundary: Registration application, the standards of boundary descriptions are particularly lax.

Traditionally, the description of the boundaries is found in the parcels clause of the earliest conveyance relating to the parcel of land. These deeds never tell us who was responsible for writing the parcels clause. We know that the vendor was responsible for deciding where the boundary would be, but was it he who wrote the parcels clause and drew the conveyance plan, was it the estate agent who was selling the land for him, or was it the solicitor who did the conveyancing? We simply don't know who wrote the description found in the parcels clause.

Examples of boundaries descriptions in the parcels clause range from the likes of:

  • "ALL THAT piece or parcel of land in the parish of Little Sniggering in the County of Midhamptonshire together with the dwelling thereon known as Magpie Cottage ... "
    which contains enough information to enable us to locate the property but not enough information to locate its boundaries;
    to:
  • " ... Magpie Cottage having a frontage to Mill Street of thirty seven feet and a depth therefom of ninety five feet ... "
    which, although it gives us a general size for the plot of land does not tell us the shape of the land (rectangle, parallelogram, or some other quadrilateral), nor does it tell us what physical features mark the boundaries nor how far each of those boundaries is from the nearest side of the house;
    to:
  • a series of conveyances for detached properties with large gardens in a small town in Scotland where the parcels clause for each ran to a couple of pages because it described each boundary by the side of the land it occupied, the physical feature (wall, fence, hedge, etc) that it followed, the distance for which it followed that feature, and its junction with the next stretch of the boundary, i.e. each property had a metes and bounds description as well as a conveyance plan (with apologies to readers in Scotland where the title deed that records the sale is known as a 'disponement' rather than a 'conveyance').

It was normal practice, presumably to protect the vendor against any accusation that he had misrepresented the land he was selling, to remove any implication of precision in the description by either prefixing each dimension with the word "about" or suffixing it with the phrase "or thereabouts" or even with "be it a little more or less". So anyone who today owns a 100-year-old house and thinks that he can ascertain from such dimensions the position of his boundaries to the nearest inch is simply deluding himself.

In many old conveyances the parcels clause is often expanded by reference to the plan attached. If a picture paints a thousand words then a plan is capable of conveying information about the boundaries far more concisely than is possible than with the words used in the parcels clause. However, the quality of the plan that was either "attached to" a conveyance or "drawn hereon" usually left a great deal to be desired. An inaccurate tracing made from an Ordnance Survey map was quite common, as was a simple sketch map. Neither is capable of telling you exactly where the boundaries are.

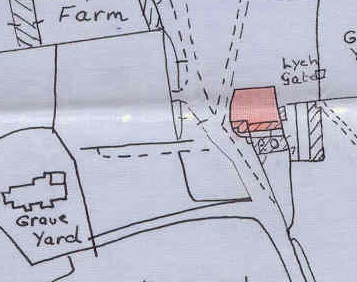

Sketch plan from 1925 conveyance is of uncertain accuracy.   1956 conveyance plan for the same property is an inaccurate tracing from an Ordnance Survey map.

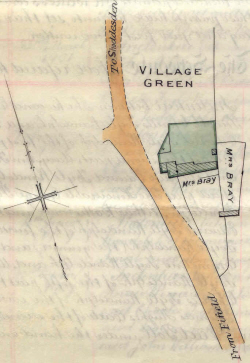

The plan to the 1925 conveyance (left) is a sketch map of questionable accuracy whilst its 1956 counterpart (above) is an inaccurate tracing made of an Ordnance Survey map.
